relay Id Mq 1080033 For BMW 108.12.23

relay Id Mq 1080033  For BMW 108.12.23

(0 reviews)

SKU
(LARS)108.12.23/BMW
Weight
1.00 kg
Our price:
£11.30
Qty

Please Check Motorcycle Fitment Data Below


HERTH + BUSS Operating current relay 5 poles, 12 V
Minirelais with holder and flat plug connections 6.3 mm
With parallel resistance to coil
Closes the circuit between the power source and an electrical load
Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.
Technical specifications:
Connector design ID: B1

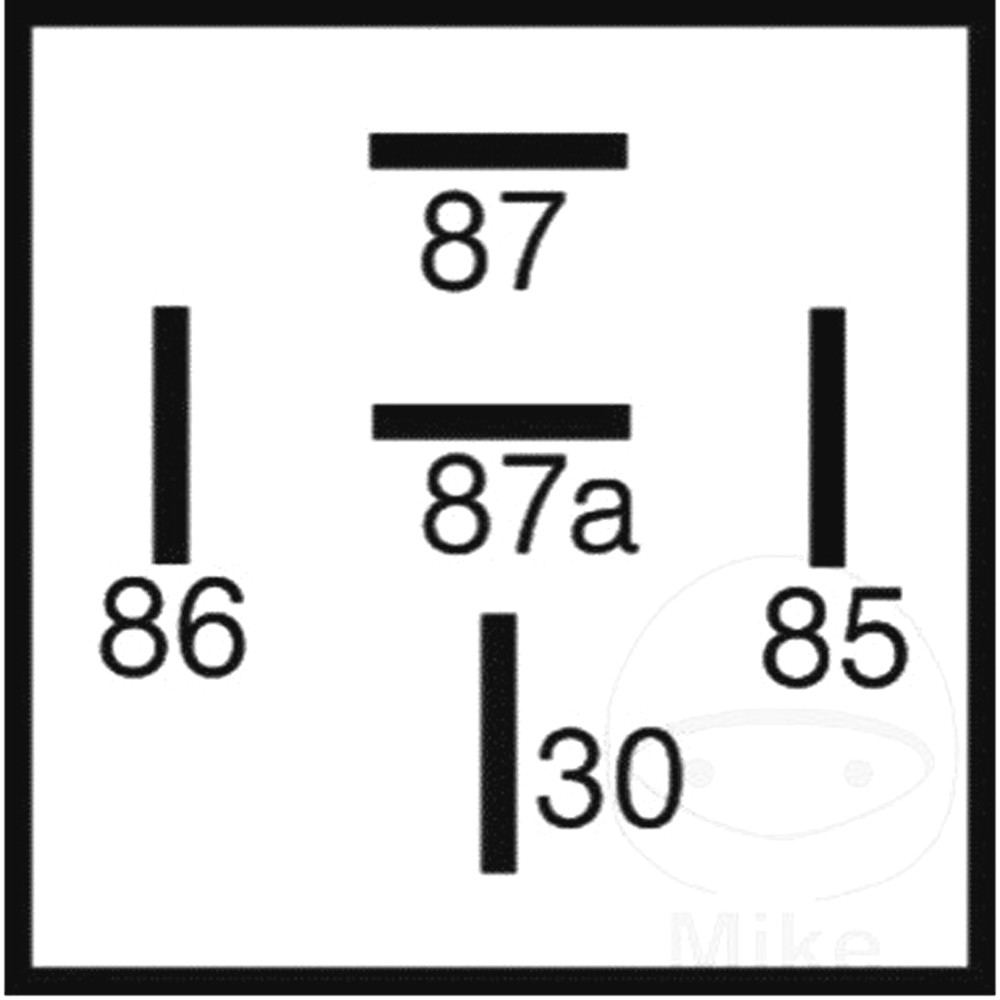

Wiring diagram: W1
Temperature range from -40 ° C to max. 85 ° C
Power handling (at +85 ° C) Normally open contact
Ohmic load: 20 A
Inductive load: 6 A
Capacitive load: 10 A
Power handling (at +85 ° C) NO contact
Ohmic load: 30 A
Inductive load: 20 A
Capacitive load: 20 A

Model Codes :75613151

Contents:1 Unit


Technical Data:
Voltage:   12 V
Number of poles:   5
Switch function:   Change
Load bearing capacity:   20/30 A
With holder:   Yes

Motorcycle Fitment Data

BMW R 60 /6 1973 - 1976
BMW R 75 /6 1973 - 1976
BMW R 90 /6 1973 - 1976
BMW R 90 S 1973 - 1976
